Connectors, catches & bed fittings · Bed connectors & brackets

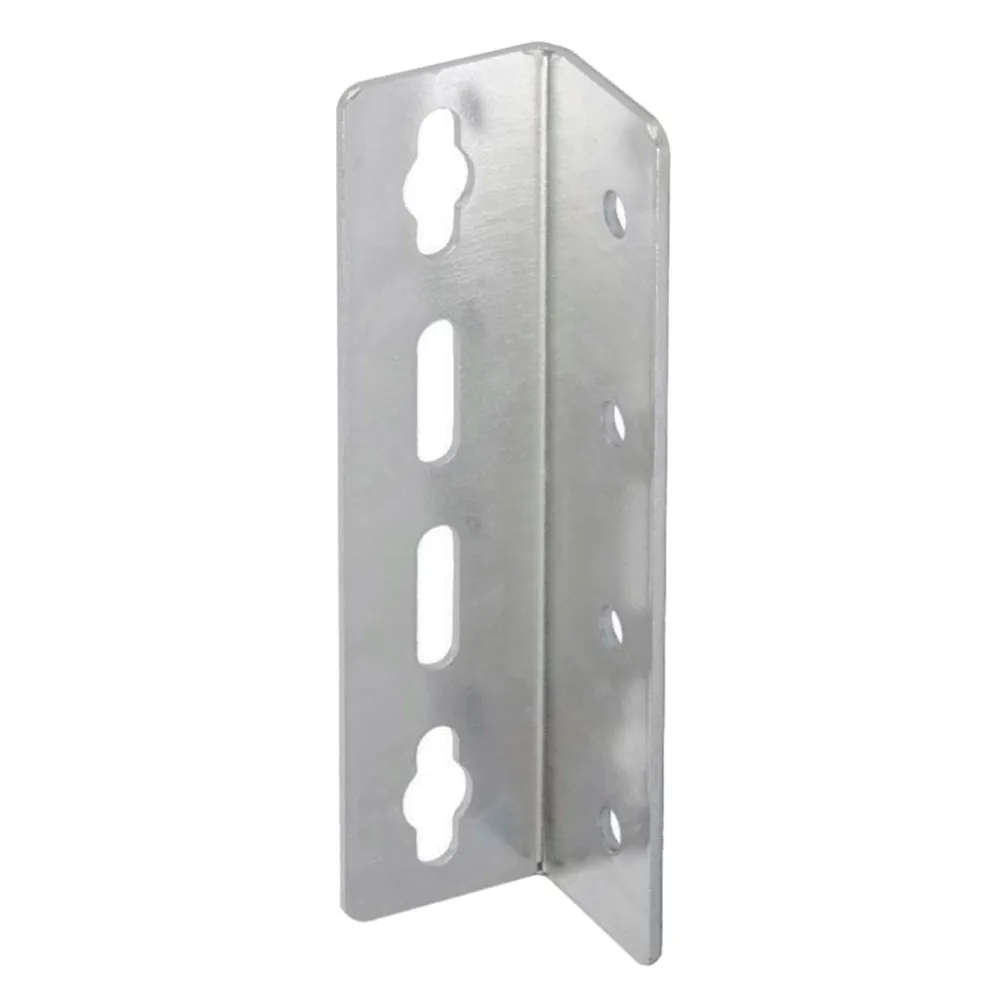

Bed corner bracket 130 × 35 × 35
SKUCN-1004
Galvanised steel angle bracket 130 × 35 × 35 mm with mounting holes. Packed 100 pcs.
- Application
- Bed frames.
- Dimensions
- 130 × 35 × 35 mm
- Material
- galvanised steel
- Finish
- galvanised
- Packing unit
- 100 pcs
Price: on request. Price, minimum order quantity and lead time are given in the quotation.
Variants (1)
| Variant code | Version |
|---|---|
| CN-1004-01 | standard version |
Technical data
Supplied without fasteners.

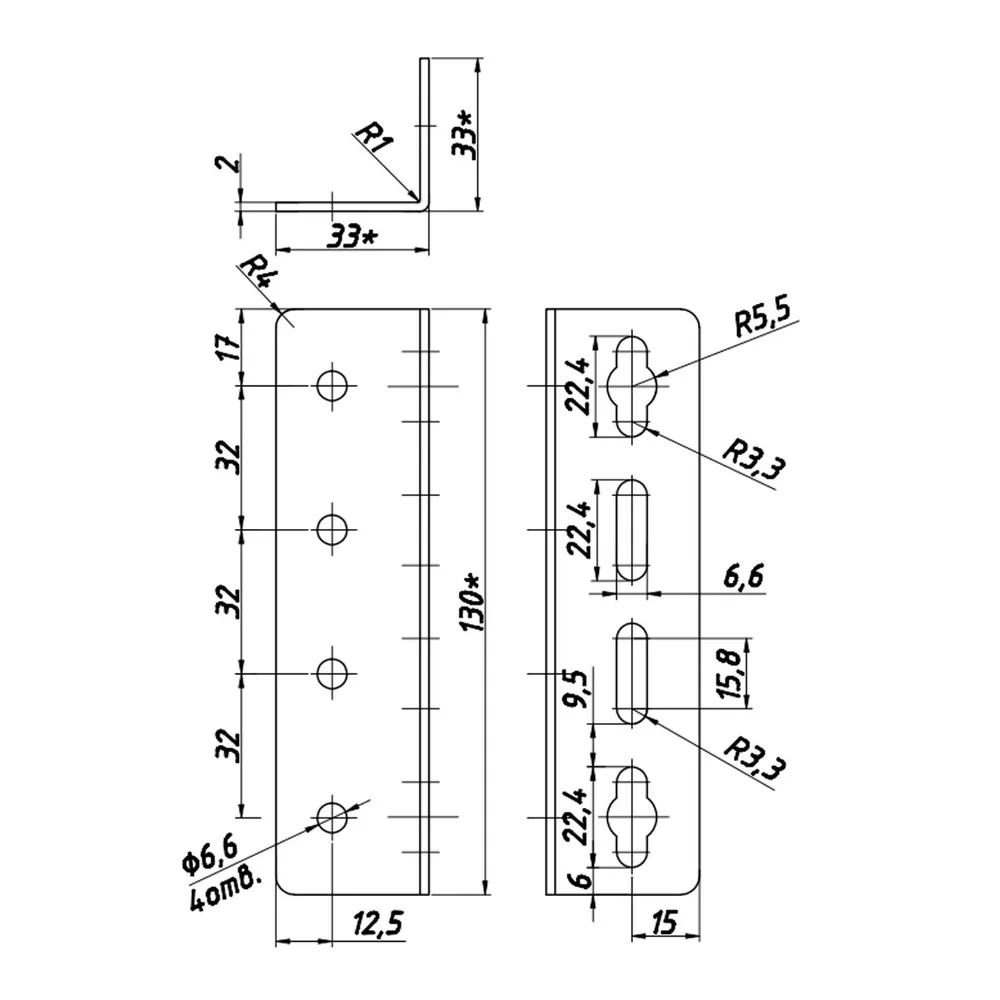

Technical drawing
