Mounting fitting

Metal fittings · Mounting plates, angles & ride-on plates

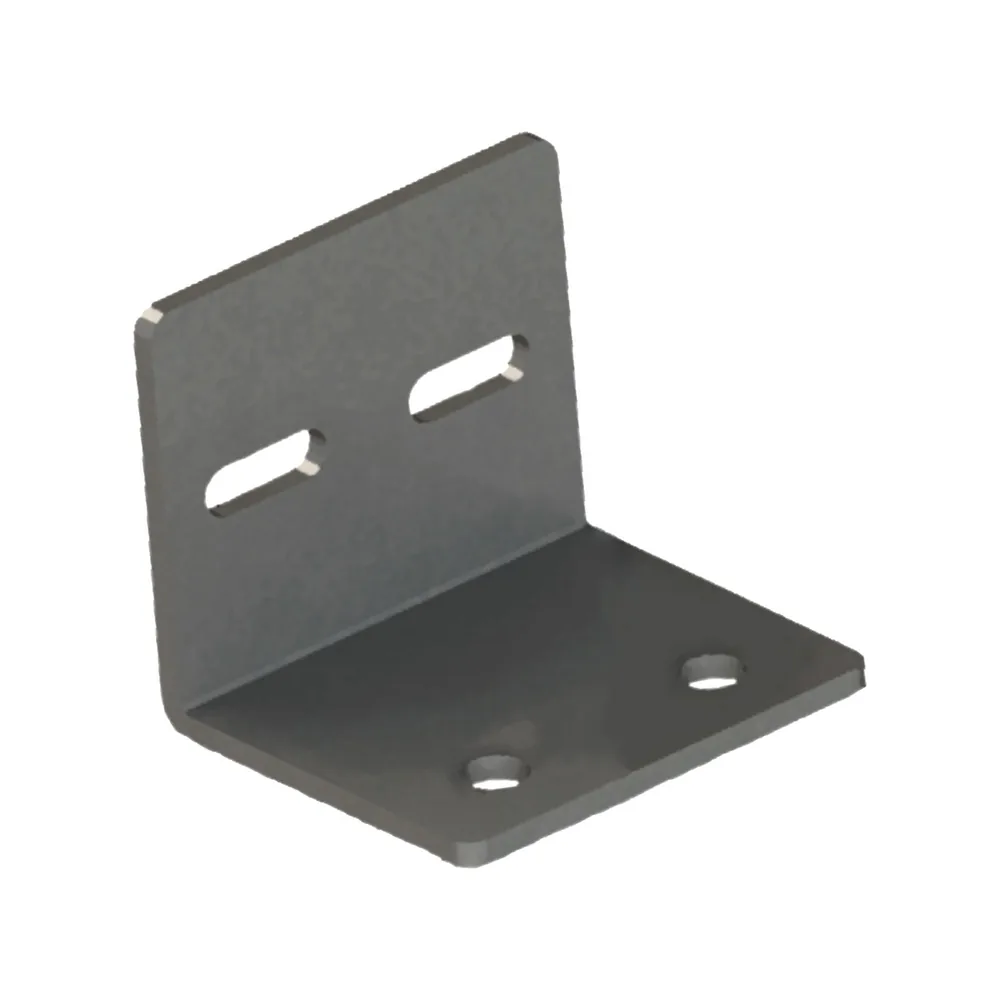

Mounting fitting

SKUFT-1023

Material: galvanised steel

Price: on request. Price, minimum order quantity and lead time are given in the quotation.

Variants (1)

Variant code	Version
FT-1023-01	standard version

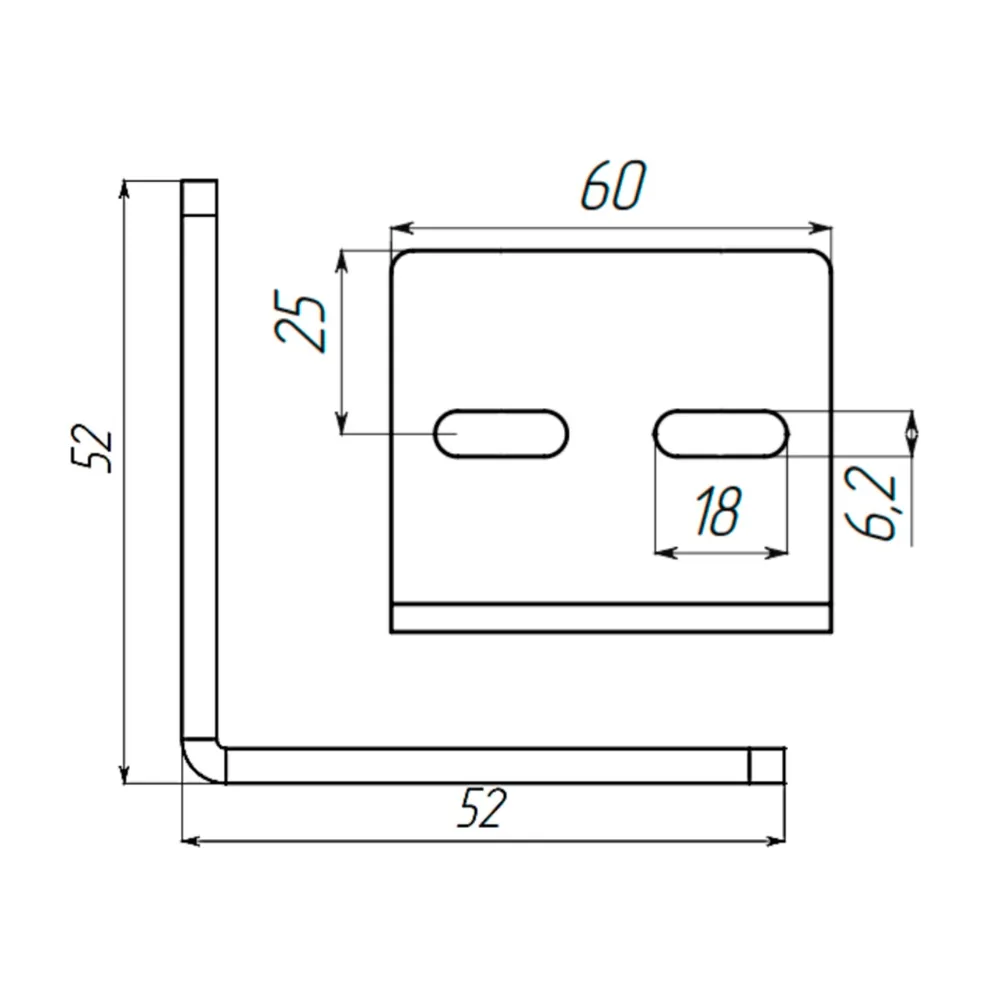

Technical drawing

Technical drawing – Mounting fitting
